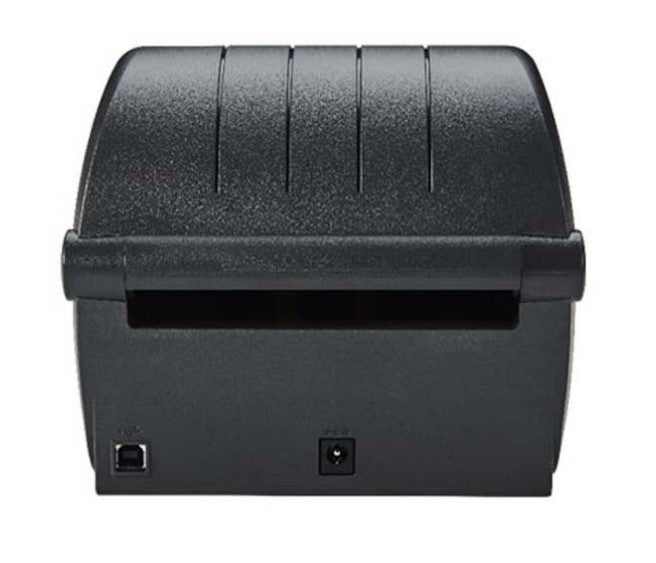

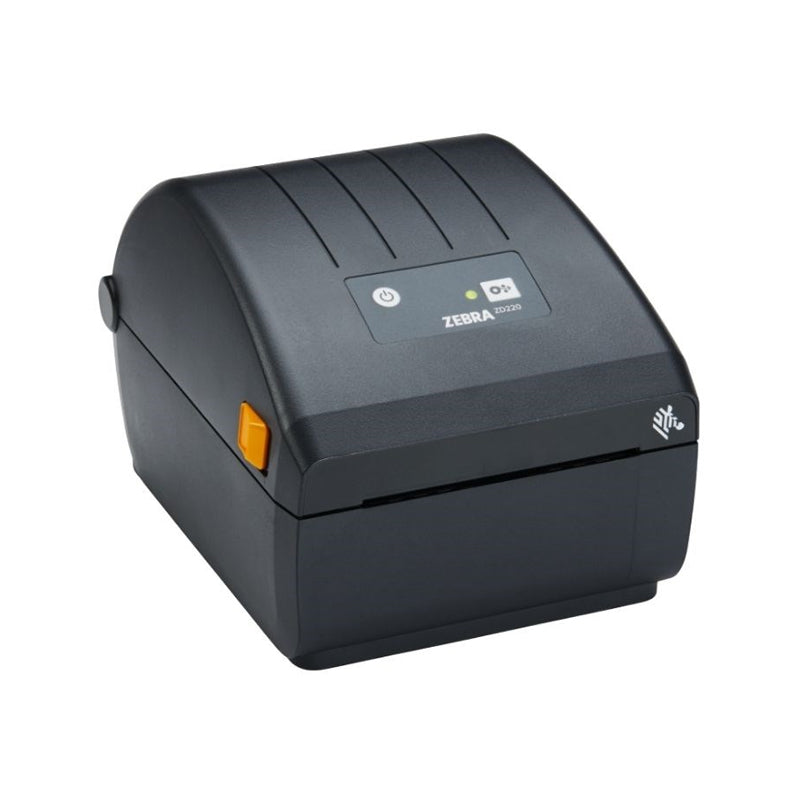

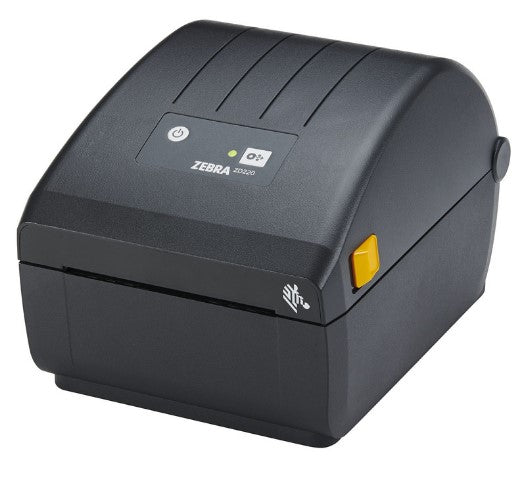

Zebra ZD220 Direct Thermal Label Printer - USB

The Zebra ZD220 desktop printer offers dependable performance and essential features at a cost-effective price. It’s built with durable dual-wall construction and is ENERGY STAR certified for lower operating costs, ensuring a great investment over its lifespan.

• • Direct Thermal or Thermal Transfer (*Ribbon Required for thermal transfer) print method
• • ZPL and EPL programming languages
• • Single LED status indicator
• • Single button for feed/pause
• • USB connectivity
• • OpenACCESS™ for easy media loading
• • Dual-wall frame construction
• • ENERGY STAR qualified
• • ZebraDesigner Essentials – easy label design tool free at www.zebra.com/zebradesigner
• Two-year standard warranty

Effortless Printing

• Easy Installation: The ZD220 is straightforward to install and begin printing right out of the box. It supports USB connectivity for universal interoperability.
• Legacy Printer Replacement: Easily replace legacy printers using ZPL, EPL, or non-Zebra command languages.
• Media Handling: Media changes are expedited with Zebra’s OpenACCESS™ clamshell design.
• Ideal Applications: It is suitable for use in transportation and logistics, light manufacturing, retail, and healthcare applications, allowing you to print a variety of items such as tickets, tags, passes, labels, and receipts.

Key Features for Effortless Operation:

• Fast Label Production: The printer produces labels at a rate of 4 inches per second to keep workflows efficient.
• Increased Memory: Store more fonts and graphics.
• Intuitive Design: A single LED indicator and feed/pause button simplify operation and status identification.
• Print Methods: Choose between direct thermal or thermal transfer (requires a ribbon) models.
• Optional Peeler: Add an optional factory-installed peeler for convenience.
• Print DNA Basic: Includes a core set of software applications and capabilities for cost-effective and dependable printing.

Global Support by Zebra:

• Access repair support services, live-agent technical support, and software assistance worldwide through Zebra’s trusted network of partners.
• Zebra OneCare™: Provides enhanced coverage beyond standard warranty, prioritizing repair turnaround times at a fraction of the cost of a single repair.

Quality Supplies Matter:

• Zebra rigorously pretests its own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer.
• Choose Zebra Certified Supplies for industry-leading quality, service, and thermal printing expertise.

SPECIFICATIONS

• Dimension:
  Direct Thermal:
• 8.6 in. L x 6.9 in. W x 5.9 in. H
  220 mm L x 176 mm W x 151 mm H
• Weight
  2.5 lbs./1.1 kg

• Printer Specifications
  Resolution
  203 dpi/8 dots per mm
• Memory
  128 MB Flash; 128 MB SDRAM
• Maximum Print Width
  4.09 in./104 mm
• Print Speed
  4 in./102 mm per second
• Media Sensors
  Movable black mark sensor,
  limited range from center to left side
  Fixed off-center gap sensor
• Firmware
  ZPL II; EPL 2; XML


• Media and Ribbon Characteristics
  Maximum Label Length:
• 39.0 in./991 mm
• Media Width:
  1.00 in./25.4 mm to 4.4 in./112 mm
• Media Roll Size:
  5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm)
• Thickness:
  0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
• Media Types:
  Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
• Ribbon Outside Diameter:
  1.34 in./34 mm (74 m)
• Maximum Ribbon Length:
  244 ft. (74 m)
• Ribbon Ratio:
  1:1 media to ribbon (74 m)
• Ribbon Width:
  1.33 in./33.8 mm ~ 4.3 in./109.2 mm
• Ribbon Core I.D.:
  74 Meter ribbon 0.5 in./12.7 mm


• Operating Characteristics
  Operating Temp.:
  40° to 105° F/4.4° to 41° C

  Storage Temp.:
  -40° to 140° F/-40° to 60° C

  Operating Humidity:
  10% to 90% non-condensing

  Storage Humidity:
  5% to 95% non-condensing

  Electrical:
  Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified


• Operations and Accessories
  Media Handling:
  Factory installed peeler

  Real Time Clock:
  None


• Fonts/Graphics/Symbologies
  Bar Code Ratios:
  2:1 and 3:1

  1D Bar Codes:
  Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code

  2D Bar Codes:
  Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
