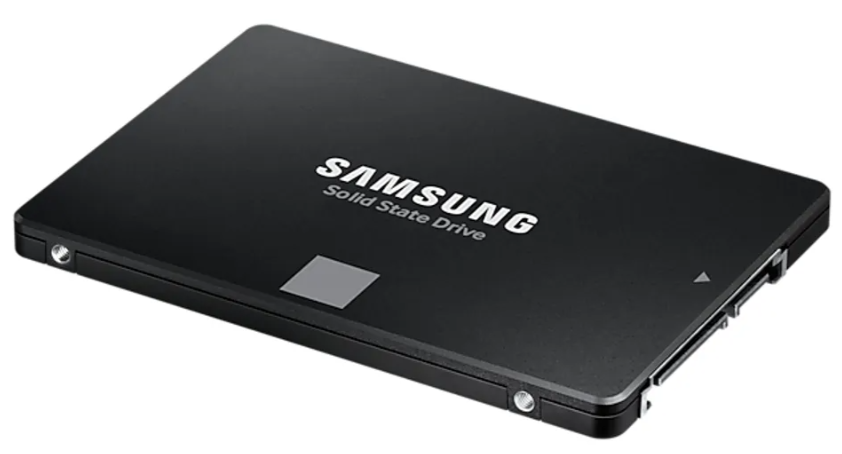

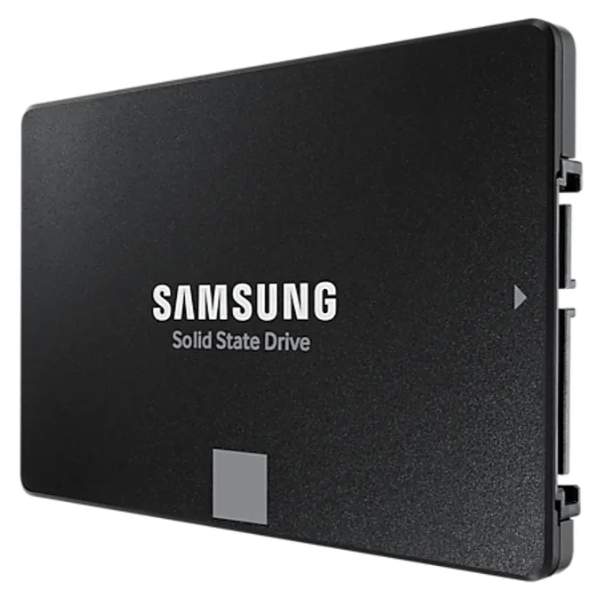

Samsung SSD 870 EVO SATA III 2.5 inch 500GB

Introducing the 870 EVO, building upon their pioneering SSD technology, this drive offers upgraded performance, reliability, and compatibility. Whether you’re a content creator, IT professional, or an everyday user, the 870 EVO has you covered.

• Performance Excellence: The 870 EVO achieves maximum SATA interface speeds with sequential read speeds of up to 560 MB/s and write speeds of up to 530 MB/s. It’s perfect for everyday users who want professional-level SSD performance. The Intelligent TurboWrite technology accelerates write speeds and maintains long-term high performance with a larger variable buffer.

• Reliability: With up to 2,400 TBW (Terabytes Written) under a 5-year limited warranty, the 870 EVO meets industry-leading standards. It can handle tasks from everyday computing to 8K video processing. The 6th Gen. VNAND and MKX controller ensure a stable experience.

• Compatibility: The 870 EVO has passed compatibility tests with major host systems, chipsets, motherboards, NAS, and video recording devices.

• Easy Upgrade: Upgrading to the 870 EVO is straightforward. If you have a desktop PC or laptop that supports a standard 2.5-inch SATA form factor, simply plug in the 870 EVO and let the migration software take care of the rest.

Excellence in Performance:

• Achieves maximum SATA interface speeds of 560/530 MB/s sequential read/write.
• Intelligent TurboWrite accelerates write speeds and maintains long-term high performance with a larger variable buffer.

Industry-Defining Reliability:

• Provides up to 2,400 TBW (Terabytes Written) under a 5-year limited warranty.
• Withstands tasks from everyday computing to 8K video processing.
• Equipped with 6th Gen. VNAND and MKX controller for a stable host experience.

More Compatible Than Ever:

• Passed compatibility tests with major host systems, chipsets, motherboards, NAS, and video recording devices.
• Proven versatility compatible with systems and tasks of any user.

Easy Upgrades:

• Compatible with desktop PCs or laptops supporting a standard 2.5-inch SATA form factor.
• Plug-and-play convenience with the renewed migration software.

Samsung Magician Software:

• Manage your drive with Samsung Magician 6 software.
• Stay updated, monitor health, and enhance performance.

World’s No.1 Flash Memory:

• Trusted brand since 2003.
• In-house production of firmware, DRAM, and NAND ensures quality you can trust.

Technical Specifications

General Features:

• Application: Client PCs
• Capacity: 500 GB (1 GB = 1 Billion byte by IDEMA) *Actual usable capacity may be less due to formatting, partitioning, operating system, applications, or other factors.
• Form Factor: 2.5 inch
• Interface: SATA 6 Gb/s (compatible with SATA 3 Gb/s & SATA 1.5 Gb/s)
• Dimensions (W x H x D): 100 x 69.85 x 6.8 mm
• Weight: Approx. 45.0 g
• Storage Memory: Samsung V-NAND 3bit MLC
• Controller: Samsung MKX Controller
• Cache Memory: Samsung 512 MB Low Power DDR4 SDRAM

Special Features:

• TRIM Support: Supported
• S.M.A.R.T Support: Supported
• Garbage Collection (GC): Auto Garbage Collection Algorithm
• Encryption Support: AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
• WWN Support: World Wide Name supported
• Device Sleep Mode Support: Yes

Performance:

• Sequential Read: Up to 560 MB/s (performance may vary based on system hardware & configuration)
• Sequential Write: Up to 530 MB/s (measured with Intelligent TurboWrite technology being activated)
• Random Read (4 KB, QD32): Up to 98,000 IOPS (measured with Intelligent TurboWrite technology being activated)
• Random Write (4 KB, QD32): Up to 88,000 IOPS (measured with Intelligent TurboWrite technology being activated)
• Random Read (4 KB, QD1): Up to 13,000 IOPS (measured with Intelligent TurboWrite technology being activated)
• Random Write (4 KB, QD1): Up to 36,000 IOPS (measured with Intelligent TurboWrite technology being activated)

Environment:

• Average Power Consumption (System Level):
  • Average: 2.2 W
  • Maximum (Burst mode): 3.5 W (actual power consumption may vary depending on system hardware & configuration)
• Power Consumption (Idle): Max. 30 mW (actual power consumption may vary depending on system hardware & configuration)
• Allowable Voltage: 5V ± 5%

Reliability:

• MTBF (Mean Time Between Failures): 1.5 Million Hours
• Operating Temperature: 0 - 70 ?
• Shock: 1,500 G & 0.5 ms (Half sine)

Accessories:

• Installation Kit: Not Available

Software:

• Management Software: Samsung Magician for SSD management, Data Migration Software for SSD upgrade

Warranty:

• 5 Years Limited Warranty or 300 TBW (Terabytes Written) Limited Warranty
