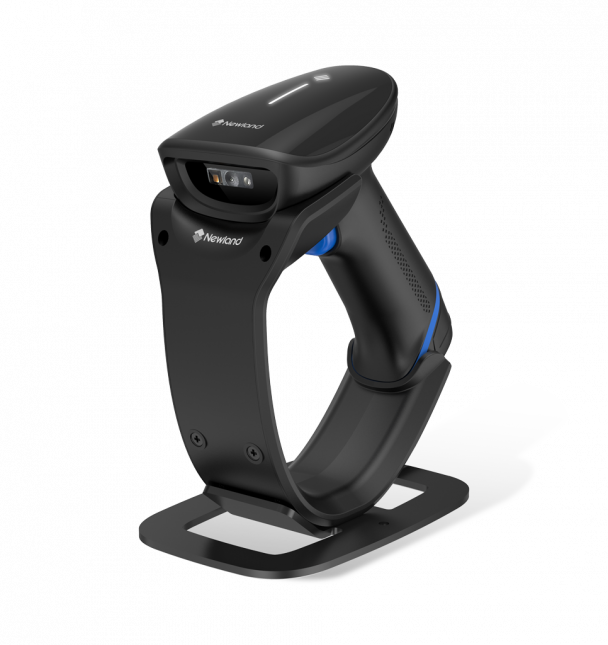

Newland HR2300 Wireless Bluetooth Scanner with stand

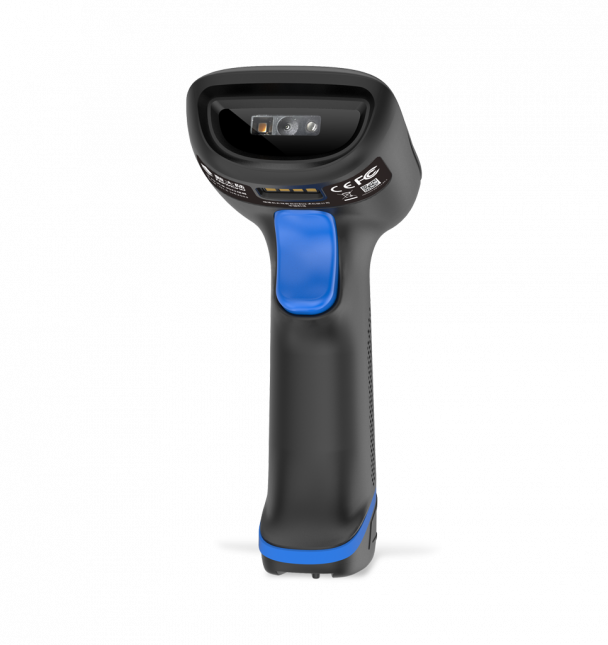

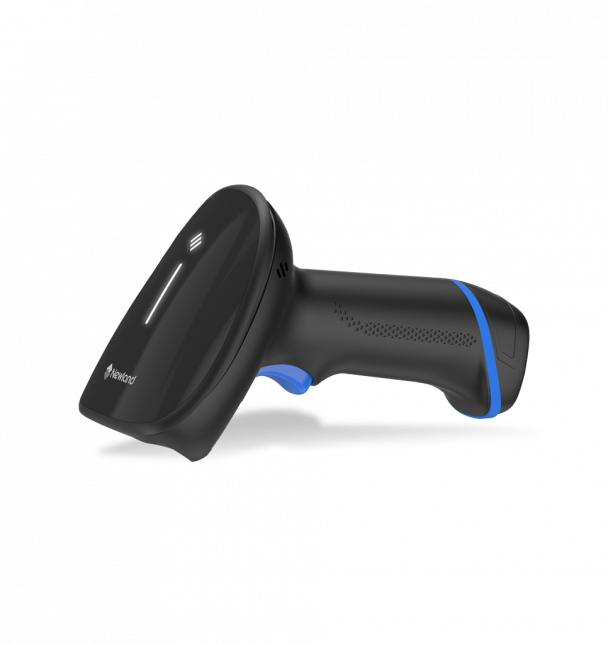

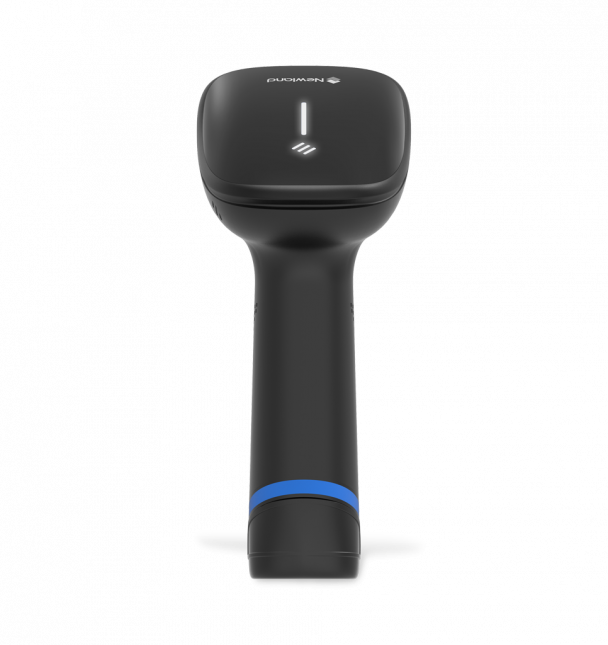

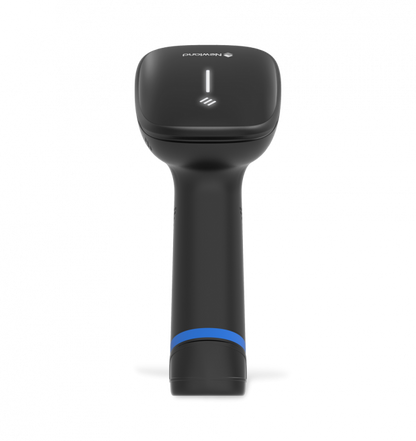

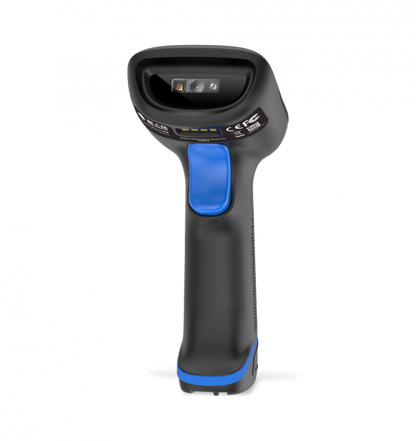

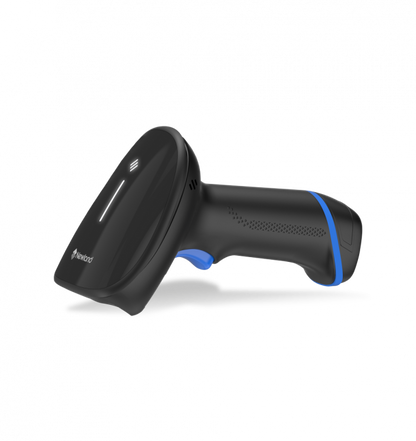

HR23 Dorada Bluetooth Handheld Scanners

Overview

The HR23 Dorada Bluetooth offers top-tier cordless 2D scanning at the price of a 1D scanner, thanks to Newland’s advanced decoding technology. Its ergonomic and creative design ensures comfort and productivity, making it ideal for intensive handheld scanning, from high-density to damaged, vague, and distorted barcodes.

Key Features

Replaceable Battery

• The HR23 Dorada’s battery provides up to 12 hours of continuous use. For uninterrupted usage, it features an easily removable battery, enhancing operational efficiency. The new charging contact design ensures reliable and long-lasting connections, significantly improving the battery life-cycle compared to its predecessor.

Enhanced Connectivity

• Equipped with Bluetooth 5.0, the HR23 Dorada offers an increased wireless range of up to 100 meters in open spaces, enhancing flexibility. It supports seamless synchronous, asynchronous, and batch communication modes for all scanning requirements.

Rugged Reliability

• With an IP52 rating and the ability to survive a 1.5m drop onto concrete, the HR23 Dorada is built for demanding environments and tasks.

Advanced Scanning

• Featuring Newland’s key decoding technology, the HR23 Dorada can scan all types of barcodes, including those that are distorted, damaged, or high-density. Its field of view covers both horizontal and vertical directions, offering a seamless transition from 1D to 2D scanning at an entry-level price.

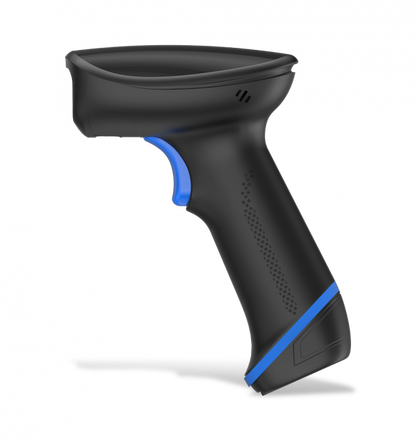

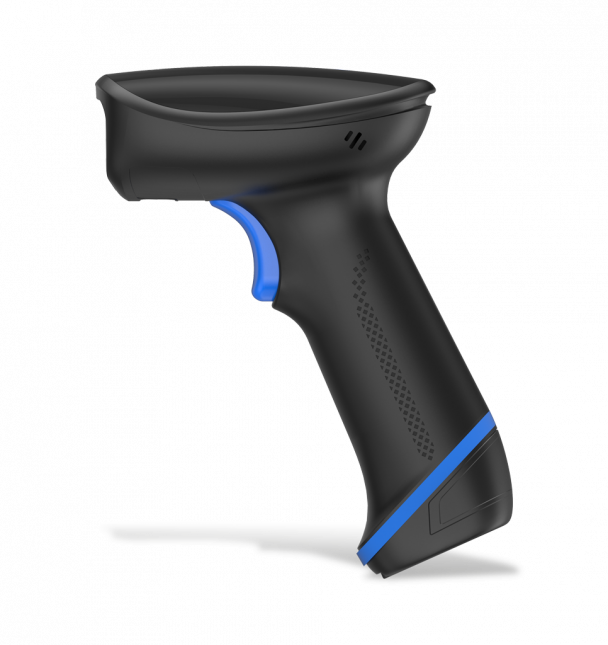

Stylish and Comfortable

• The HR23 Dorada boasts a well-balanced and ergonomic design, fitting perfectly in the user’s hand. Its lightweight and innovative design ensures comfort and high productivity.

EasySet Compatible

• The HR23 Dorada comes with EasySet, Newland’s configuration software, simplifying the scanner configuration process. Users can send configurations directly to the scanner, save them for future deployment, or display them as a series of barcodes in a single document.



Technical Specifications

Data Capture

• 1D Barcodes: Code 11, Code 128, Code 39, GS1-128 (UCC/ENA-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1Databar (RSS)
• 2D Barcodes: PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR, Chinese Sensible Code
• Image Sensor: 640x480 CMOS
• Aiming: Red LED
• Illumination: White LED
• Resolution: ?3mil
• Depth of Field:
  • EAN 13 (13mil): 50mm-280mm
  • Code 39 (5mil): 50mm-120mm
  • PDF417 (6.7mil): 40mm-120mm
  • DataMatrix (10mil): 30mm-125mm
• Field of View:
  • Horizontal: 45°
  • Vertical: 34°
• Scan Angle:
  • Roll: 360°
  • Pitch: ±60°
  • Skew: ±60°
• Minimal Print Contrast: 20%

Performance

• Memory Flash: ?16,384 code entries (above 60 bytes)

Physical

• Battery Type: 2600mAh lithium-ion battery
• Dimensions:
  • Cradle: 140x90x144.5mm
  • Scanner: 117.5x67.5x144mm
• Expected Battery Life: ?16 hours of continuous operation (scan once per 6 seconds)
• Expected Charge Time: ?6 hours
• Input Voltage: 5V DC±5%
• Interfaces: USB (Type A), support USB-KBW, USB-CDC, HID-POS
• Notifications: Beep, LED, Vibration
• Weight:
  • Cradle: 340.5g
  • Scanner: 209g

Wireless

• Radio Technology: Bluetooth 5.0
• Wireless Distance (max.): ?100m (in open space)
• Communication Modes: Synchronous, asynchronous, and batch mode

Environmental

• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Charge Temperature: 0°C to 45°C (32°F to 113°F)
• Humidity: 5%~95% (non-condensing)
• Electro Static Discharge (ESD): ±8 KV (contact discharge); ±15 KV (air discharge)
• Drop:
  • Scanner: 1.5m drops to concrete
  • Cradle: 1.2m drops to concrete
• IP Rating: IP52

Accessories

• Standard: Charging cradle

Certifications

• Hardware: CE Red, FCC ID, RoHS 2.0, IEC62471

Warranty

• 5 Year Manufacturers Carry-In Warranty
