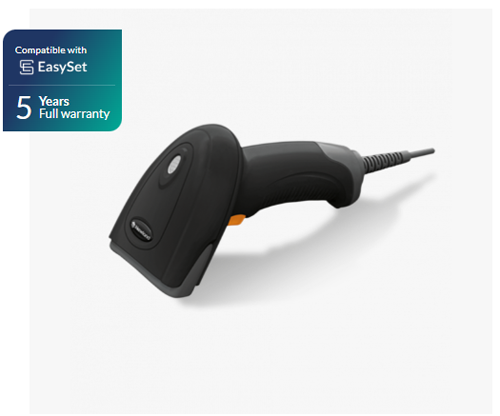

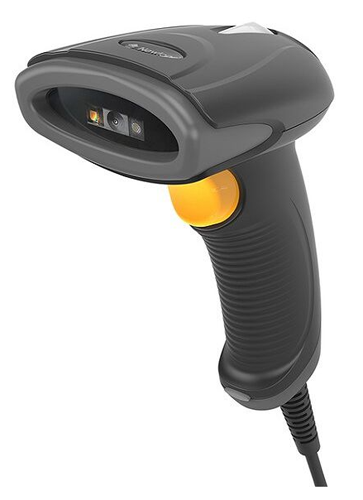

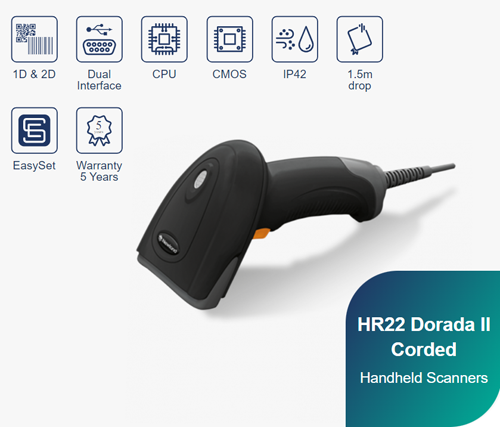

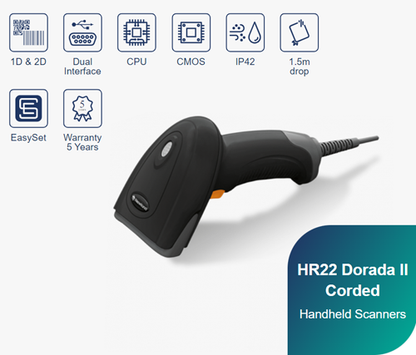

Newland HR22 Dorada II 2D CORDED USB Handheld Barcode Scanner

The Dorada series has achieved notable success in sectors seeking the functionality of a 2D scanner without the associated costs. The HR22 Dorada II, in particular, provides an affordable handheld scanning option that meets the increasing needs of the market for an advanced yet budget-friendly upgrade.

• Universal 2D Barcode Scanner
• Suitable for basic to mid-level scanning tasks
• Promotes easy and efficient operation
• Optimal for:
  • Product traceability
  • Purchase, sales, and inventory management
  • Ticket and voucher management
  • Office automation processes

The HR22 Dorada II is a leap forward in scanning technology, offering the advanced capabilities of 2D scanning at a cost that rivals traditional 1D scanners. Its design is both practical and aesthetically pleasing, ensuring it fits in effortlessly on countertops and alongside POS systems in customer-facing areas.

The scanner’s use of white illumination alongside red LED aimers makes targeting codes more accurate, giving users additional assurance in its precision. Durability is also a key feature, with the HR22 Dorada II boasting an IP42 rating and resistance to drops of up to 1.5 meters, ensuring it can withstand the rigors of daily use.

At its core, the Dorada II features Newland CPU processor decoding, enhancing its ability to handle a wider array of codes and providing more control over data processing. This includes compatibility with specialized codes such as the Italian Pharma code and Aztec codes, which are essential in pharmaceuticals and airline industries.

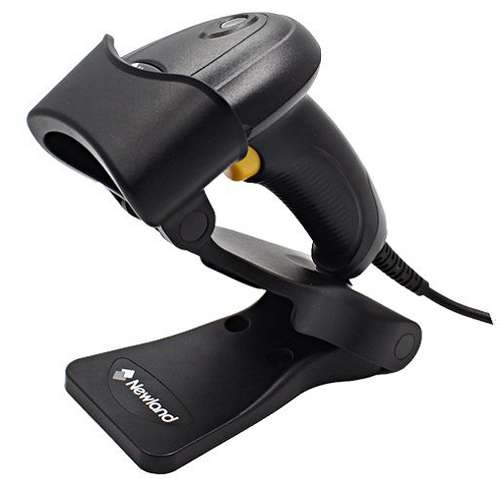

Furthermore, the HR22 Dorada II supports handsfree operation thanks to its autosense capability, which allows for seamless transition from manual to handsfree scanning when docked in its stand. The scanner and stand are available together as a convenient kit, ready for immediate deployment in any business setting.

Technical specifications

1D
All major 1D symbologies, including Code 11, Code 128, Code 39, GS1-128 (UCC/EAN 128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 25, ITF6, ITF-14, Standard 25, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS).

2D
All major 2D symbologies, including PDF417, Micro PDF417, Micro QR, QR Code, Data Matrix, Aztec.

Image Sensor
640x480 CMOS

Aiming
Red LED (625nm)

Illumination
White LED

Depth of Field EAN 13 (13mil)
50-260mm

Depth of Field Code 39 (5mil)
50-115mm

Depth of Field PDF417 (6.67mil)
50-120mm

Depth of Field DataMatrix (10mil)
35-125mm

Depth of Field QR (15mil)
30-170mm

Field of View Horizontal
45°

Field of View Vertical
34°

Scan Angle Roll
360° (QR 15mil)

Scan Angle Pitch
±55° (QR 15mil)

Scan Angle Skew
±55° (QR 15mil)

Minimal Print Contrast
20%

Current @ 5VDC Operating
190mA (typical), 201mA (max.)

Current @ 5VDC Standby
35mA

Dimensions (mm)
145×101×68

Input Voltage
5VDC±5%

Interfaces
RS-232, USB

Notifications
Beep, LED indicator

Power Consumption
950mW (typical)

Environmental

Operating Temperature
-20? to 60? (-4°F to 140°F)

Storage Temperature
-40? to 70? (-40°F to 158°F)

Humidity
5% to 95% (non-condensing)

Electro Static Discharge (ESD)
±15 kV (air discharge), ±8 kV (direct discharge)

Drop
1.2m

IP Rating
IP42

Software Configuration Tools
EasySet

Standard 5 years

• Quick Start Guide
• Barcode scanner
• Stand
• USB Cable
