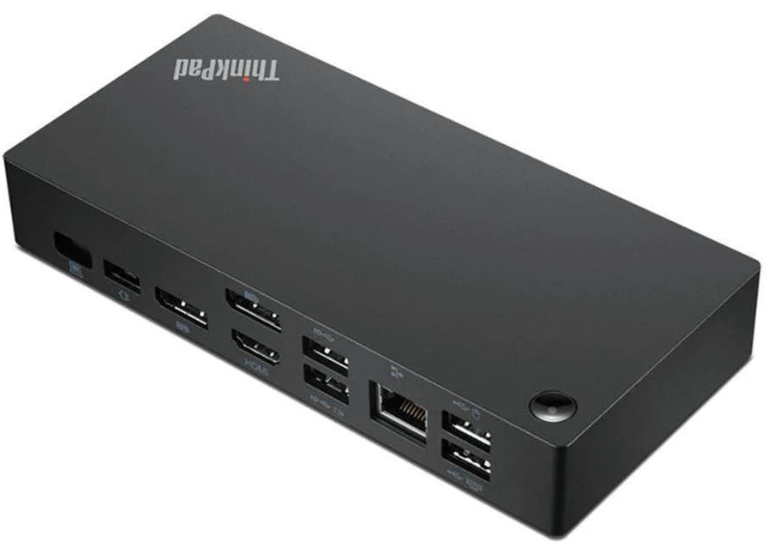

Lenovo ThinkPad Universal USB-C Dock

The ThinkPad Universal USB-C Dock represents an innovative docking solution that transcends tradition, offering users limitless potential. With universal compatibility, dynamic power charging of up to 100W for notebooks, automated firmware updates, and next-level plug-and-play functionality, it delivers everything you’d expect from the future of docking. Moreover, it’s ideal for mixed PC environments, providing users with the freedom to connect any USB Type-C industry-standard notebooks.

(*Requires laptop with USB-C DP Alt mode)

Disclaimer: Lenovo USB-C & Thunderbolt Docks are compatible with notebooks that support industry-standard USB-C Alt-Mode or Thunderbolt protocols through their Type-C port. While most Lenovo ThinkPad notebooks benefit from additional features such as MAC address passthrough, Wake-on-LAN (WOL), and a mirrored power button when using Lenovo USB-C and Thunderbolt Docks, these features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.

Additionally, the ThinkPad Universal USB-C Dock can charge notebooks up to a maximum of 100W when connected to the dock with the ThinkPad 135W AC Adapter (Slim Tip), which is available separately.

Features:

One Dock. No Limits: Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity. It offers enhanced dynamic power charging to notebooks, supporting a maximum of 100W charging. If you can think it, your dock can do it.

One Cable. No Hassle: With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.

Entire Fleet. One Manager: The ThinkPad Universal USB-C Dock is packed with basic and advanced solutions, making it effortless for IT managers to handle an entire fleet of docks. It supports traditional IT tools like PXE boot, Wake-on-LAN (WOL), and MAC address pass-through on ThinkPad notebooks. Additionally, it provides silent firmware updates, silent reboots, and remote device queries—an IT manager’s dream.

Supported by Lenovo Dock Manager: This advanced solution automatically manages docking, provides firmware updates, device queries, and analytics for all Lenovo Smart Docks.

Technical Specifications

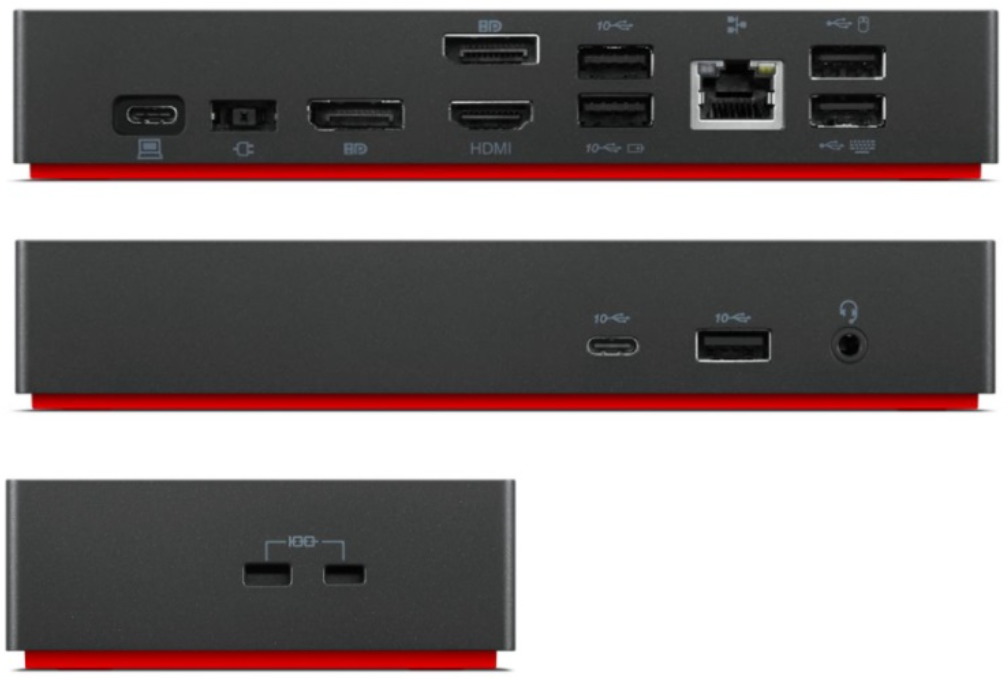

Video Ports:

• Two DisplayPort (DP)
• One HDMI

USB Ports:

• Three USB 3.1
• Two USB 2.0
• One USB-C

Audio Ports:

• Combo Audio Jack

Ethernet:

• Gigabit Ethernet

Physical Security Feature:

• Security lock slot

Maximum Number of External Monitors:

• Three

Maximum Resolution and Refresh Rate:

• Two at 3840x2160 @60Hz
• One at 3840x2160 @30Hz

Charging Port:

• DC-IN

Input Power:

• 90W or 135W

Power Delivery:

• Yes

Output Power:

• 65W with 90W power adapter connected
• 100W with 135W power adapter connected

Power Button:

• Yes

Power Plug:

• Slim-tip

Dimensions:

• Length: 171 mm (6.7 inches)
• Depth: 80 mm (3.1 inches)
• Height: 31 mm (1.2 inches)
• Weight: 340 g (0.74 lb)

Packaged Dimensions:

• Length: 210 mm (8.3 inches)
• Depth: 158 mm (6.2 inches)
• Height: 75 mm (3.0 inches)
• Packaged Weight: 955 g (2.1 lb)

Agency Approvals:

• FCC/ICES
• CE
• KCC
• RCM
• BSMI
• VCCI
• CB
• cULus
• EAC
• TUV-Mark
• Serbia Kvalitet
• LoA
• Israel SII
• Ukraine DoC
• NOM

Operating Environment:

• Minimum Operating Temperature: 0°C
• Maximum Operating Temperature: 35°C
• Minimum Relative Humidity (%): 20%
• Maximum Relative Humidity (%): 95% (no condensation)

Warranty:

• 3 Year Manufacturers Warranty
