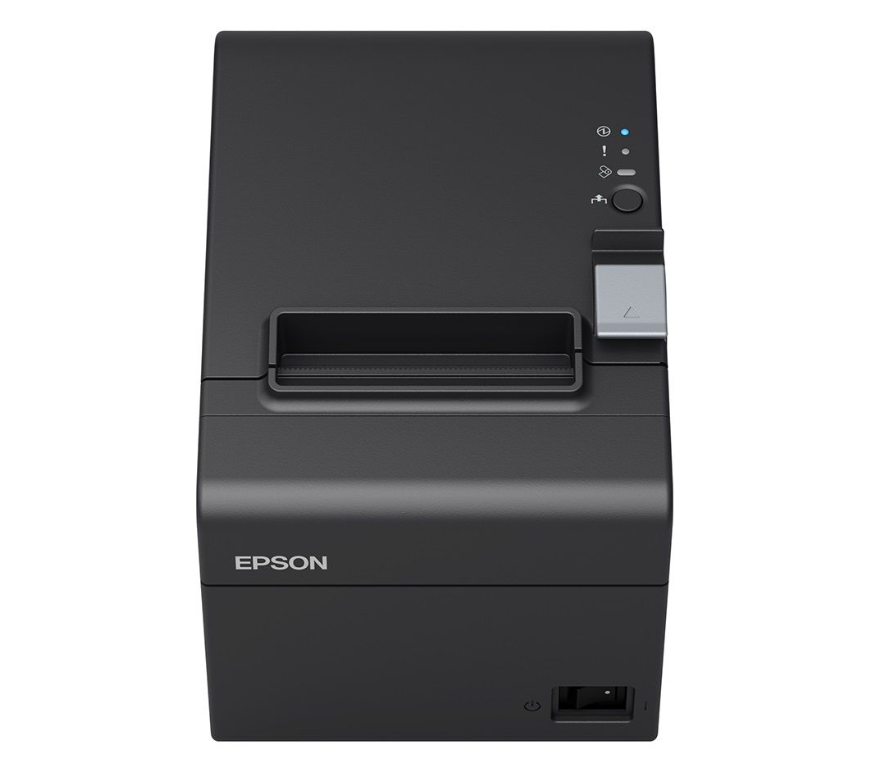

Epson TM-T20IIIE - Thermal Receipt Printer - LAN

Epson TM-T20IIIE - Thermal Receipt Printer - LAN

• Economical: Features an automatic paper reduction function.
• Reliable: Mechanism life of 15 million lines.
• Fast Print Speed: Prints at 250mm/sec.
• Flexible Connectivity: Available in two models: 1) Ethernet (LAN) , 2) USB (Remove USB port backplate and enable USB setting on printer)

Affordable This user-friendly, entry-level POS receipt printer features an 80mm printing width. Its Automatic Paper Reduction function minimizes top and bottom margins, line feed width, and barcode height, allowing for flexible receipt printing. It monitors and controls paper usage, reducing costs by printing the top logo of the next receipt before cutting, which further reduces the top margin by 12mm.

Reliable With a mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines, the TM-T20III is dependable in high-volume printing environments.

Flexible The TM-T20IIIE includes a built-in USB* and Ethernet interface. This flexibility makes it a long-term investment, allowing you to switch connectivity as needed.
* (Remove USB port backplate and enable USB setting on printer)

Fast With a print speed of 250mm/sec, this printer saves time and money, making it ideal for quickly managing queues.

Technical Specifications:

Print type

• Print method: Thermal line printing
• Technology: Thermal Line

Fonts & Styles

• Print Speed: 250 mm/sec, 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed (default): 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed (label): 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed (peeler mode): 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed (character): 0,00 ~ 0,00 lps, 0 / 0 cps, 0,00 lps (0 mm paper width)
• Print Speed (graphic): 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed (receipt): 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed (slip): 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed (endorsement): 0,00 ~ 0,00 lps, 0 / 0 cps
• Printing Font (Receipt): ANK
• Column capacity (receipt): Paper width 80 mm, 48 / 64
• Character set (receipt): 95 Alphanumeric, 18 set International, 128 x 43 Graphic
• Characters per inch: 22,6 cpi / 16,9 cpi
• Dot density: 203 DPI x 203 DPI
• Colour Printing: Black

Paper

• Paper Types: Receipt
• Paper size (ASF): Min 0 - 0 mm
• Paper size (endorsement): Min 0 - 0 mm
• Paper size (manual feed): Min 0 - 0 mm
• Paper size (roll paper): 79,50 ± 0,50 (W) mm x dia 83,00 mm, 57,50 ± 0,50 (W) mm x dia 83,00 mm
• Paper size (sheet): Min 0 - 0 mm
• Paper size (slip): Min 0 - 0 mm
• Paper size (validation): Min 0 - 0 mm

Interfaces

• Interfaces: Ethernet interface (100 Base-TX / 10 Base-T), Drawer kick-out

Data Buffer

• Data Buffer: 4 kB or 45 Bytes

Power

• Power Supply: AC adapter, C1
• Power Consumption: Standby: 0,1 A, Mean: 1,8 A
• Operating Voltage: 24 V


What's in the box

• CD Manual
• Main unit
• Power switch cover
• Roll paper
• Rubber feet
• Wall hanging bracket
• Warranty document
• Paper roll spacer
• Setup guide
• AC adapter, C1
• EURO AC cable

Warranty

• 2 Year Manufacturer Carry-In Warranty
