ATEN USB-C Travel Dock with Power Pass-Through

Name: ATEN USB-C Travel Dock with Power Pass-Through
Brand: ATEN
SKU: UH3238
Price: 1196.00 ZAR
Availability: OutOfStock

R 1,196.00

Sale Sold out

Taxes included.

Quantity

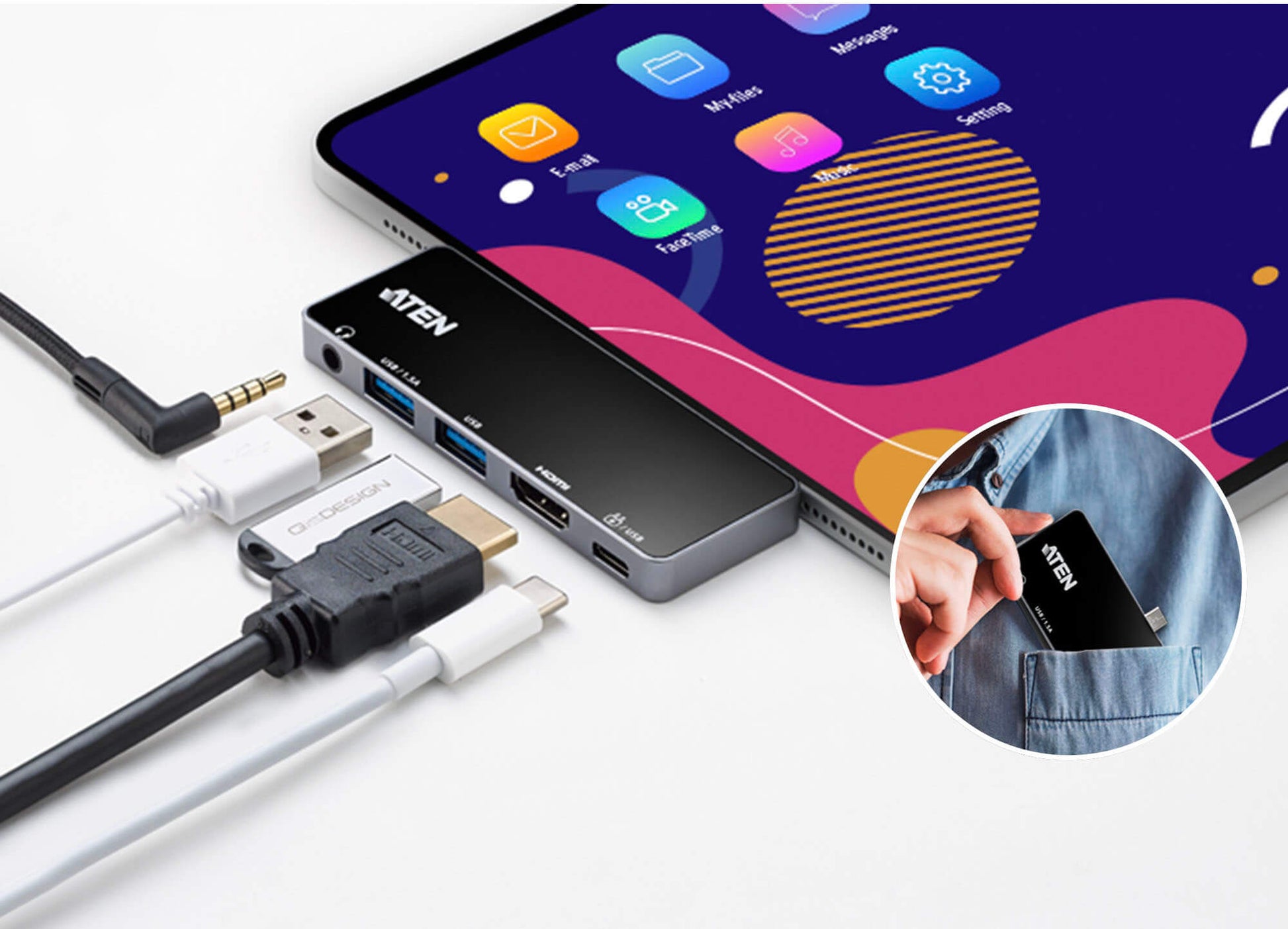

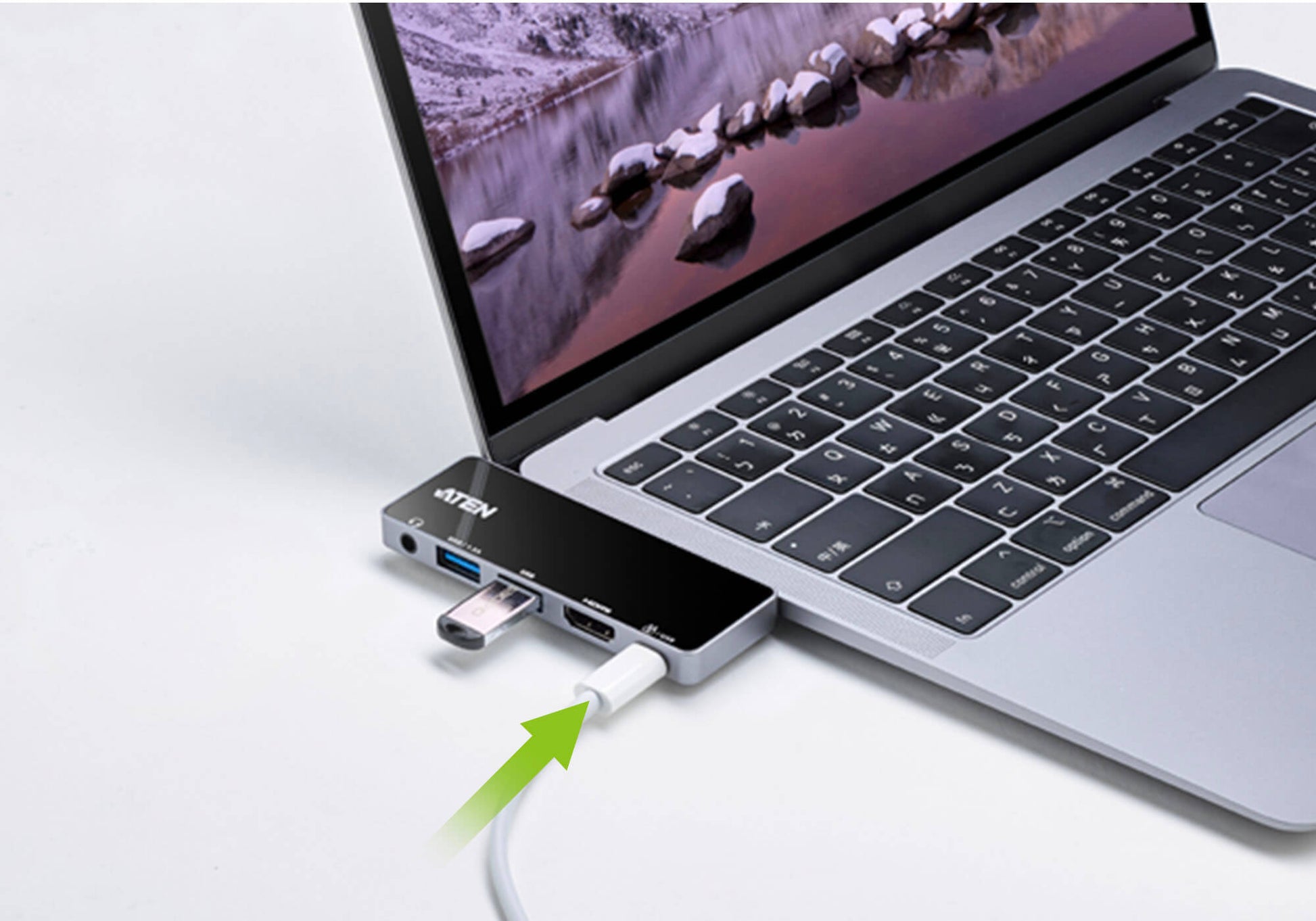

The ATEN UH3238 USB-C Travel Dock is a 5-in-1 ultra-portable travel dock that offers an uncompromising mobile experience. It provides USB-C mobile devices with access to multiple media devices. With its pocket-sized design, you can travel lighter and make the most of your mobile devices.

(*Requires device with USB-C DP Alt mode)

The UH3238 USB-C Travel Dock with Power Pass-Through is designed to be a portable and versatile connectivity solution. It features five essential ports: one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port. These ports provide both connectivity and power supply for users who travel and require mobile office scenarios.

Key features of the UH3238 include:

Data Transmission Speed: The Thunderbolt™ 3 and USB 3.2 Gen 1-compatible interface ensures superior data transmission speeds of up to 5 Gbps.

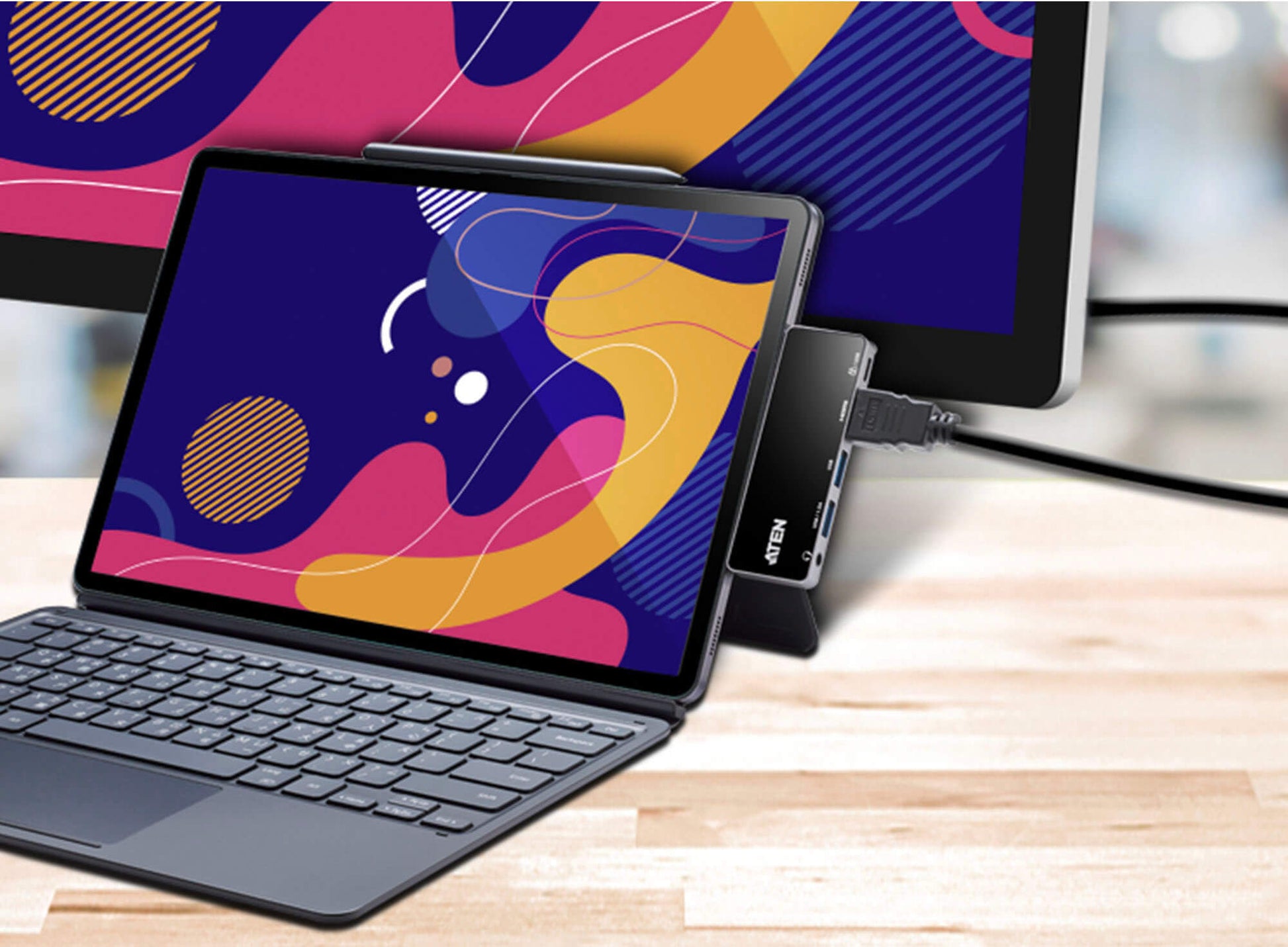

Video Output: With support for up to 4K HDMI (3840 x 2160 @ 60Hz), users can multitask at stunningly realistic UHD resolution.
Compatibility: The UH3238 is compatible with major operating systems, including Windows®, macOS X, iPadOS, and Android.
Plug-and-Play Design: It boasts a convenient plug-and-play design.
Compact and Lightweight: Weighing just 44g, it’s an ideal data and power transmission solution for mobile workstations.

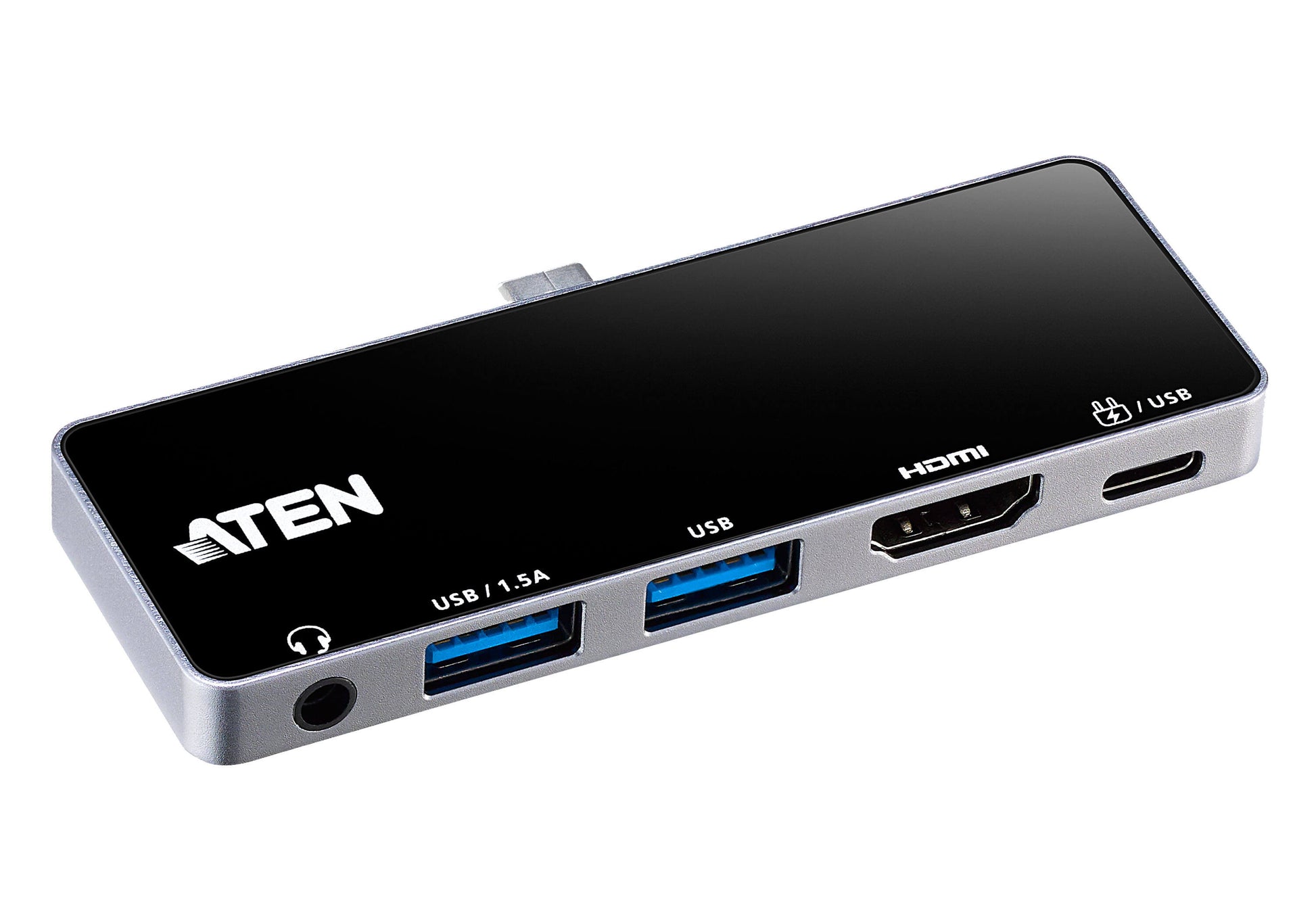

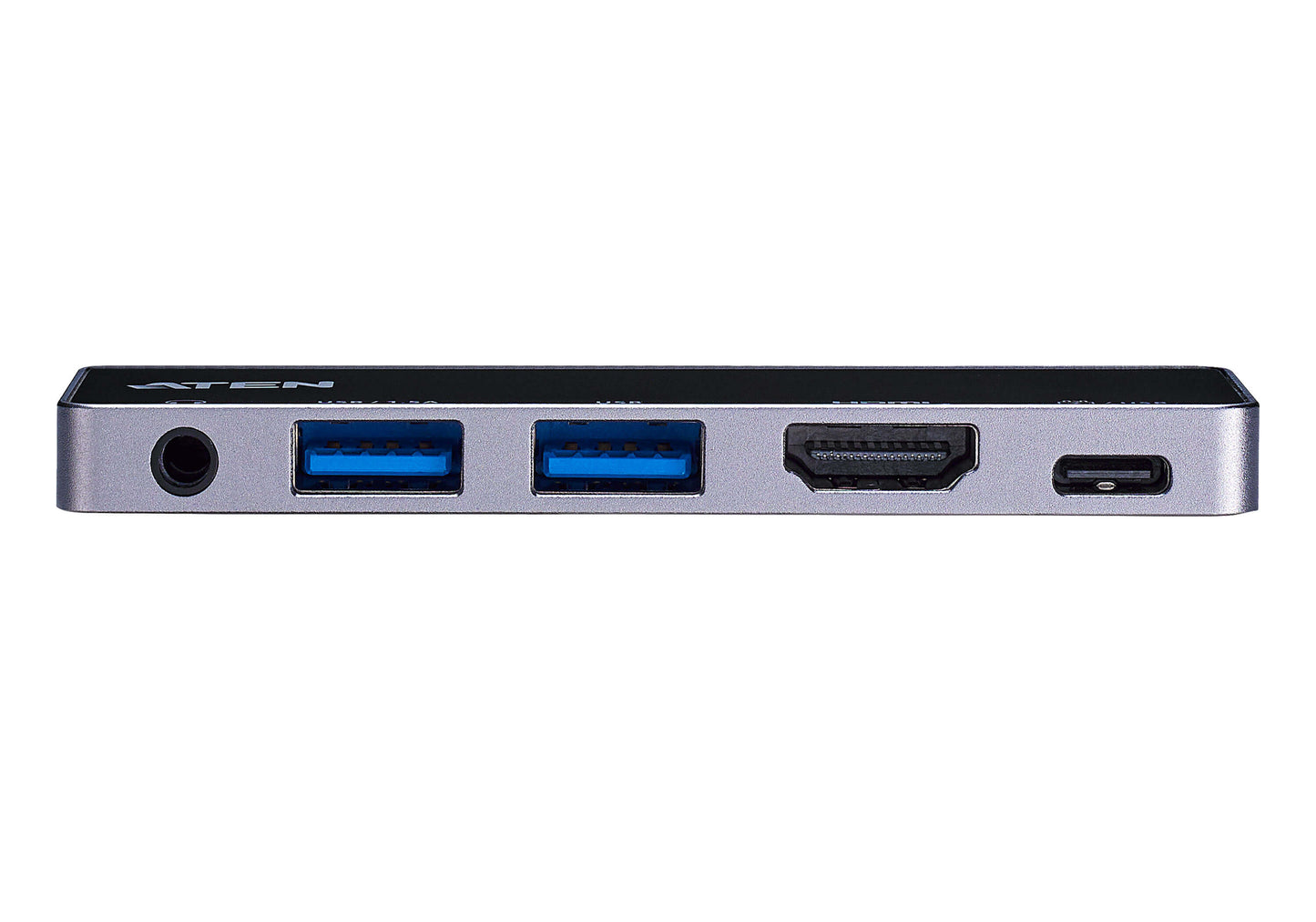

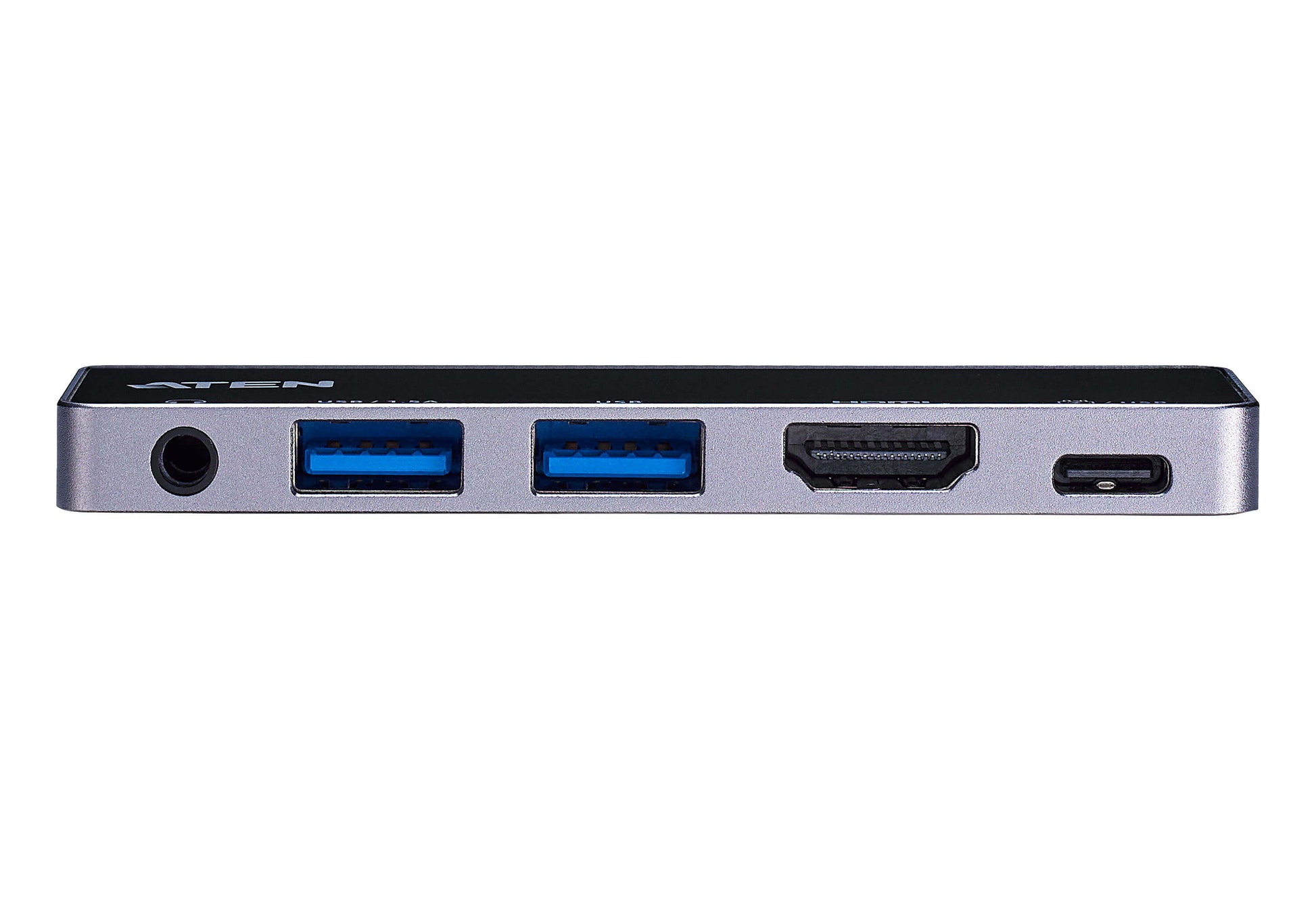

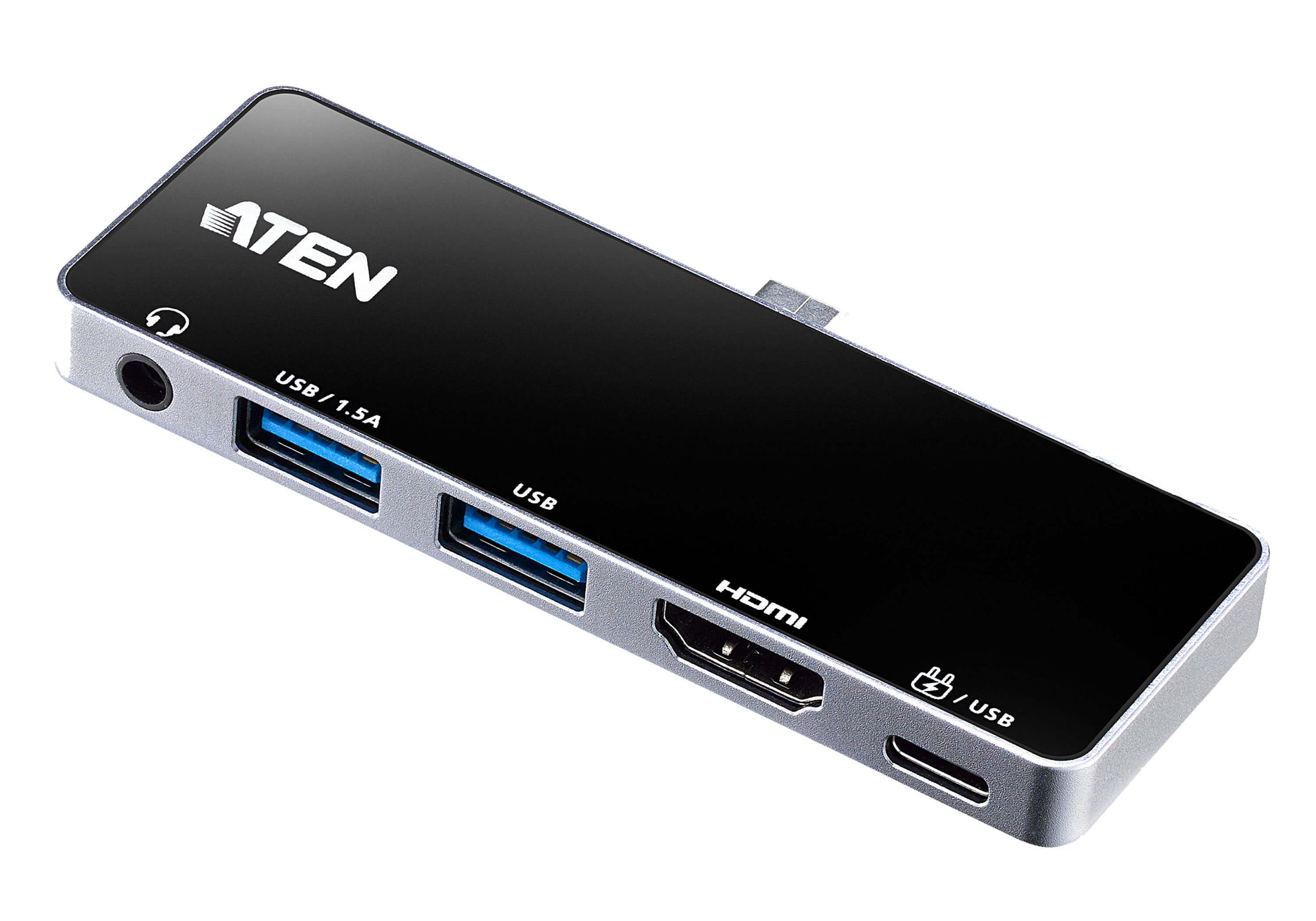

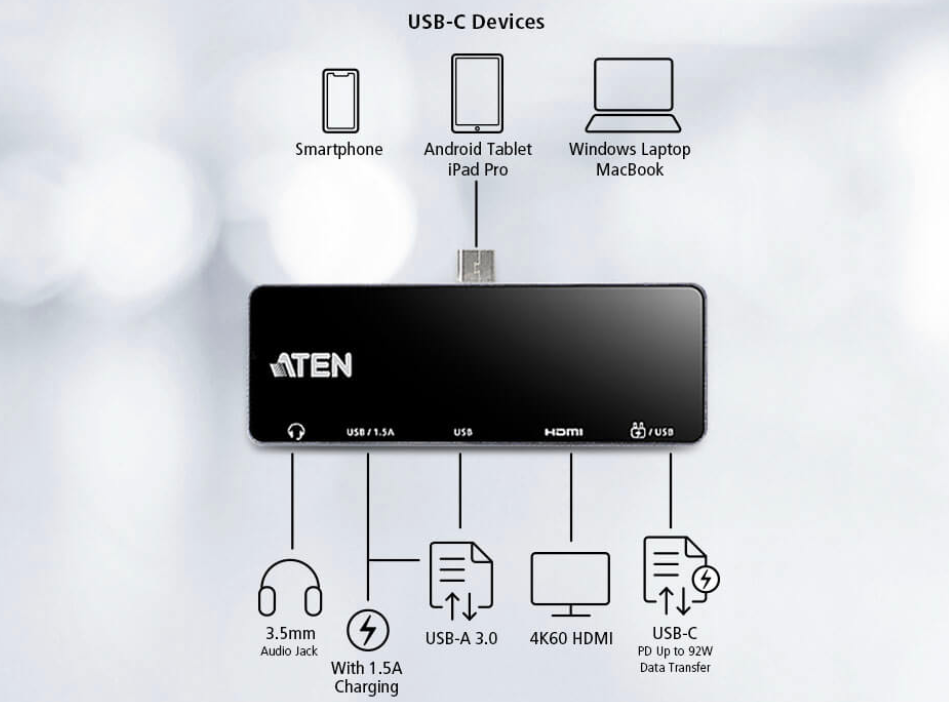

5-in-1 Travel Dock:

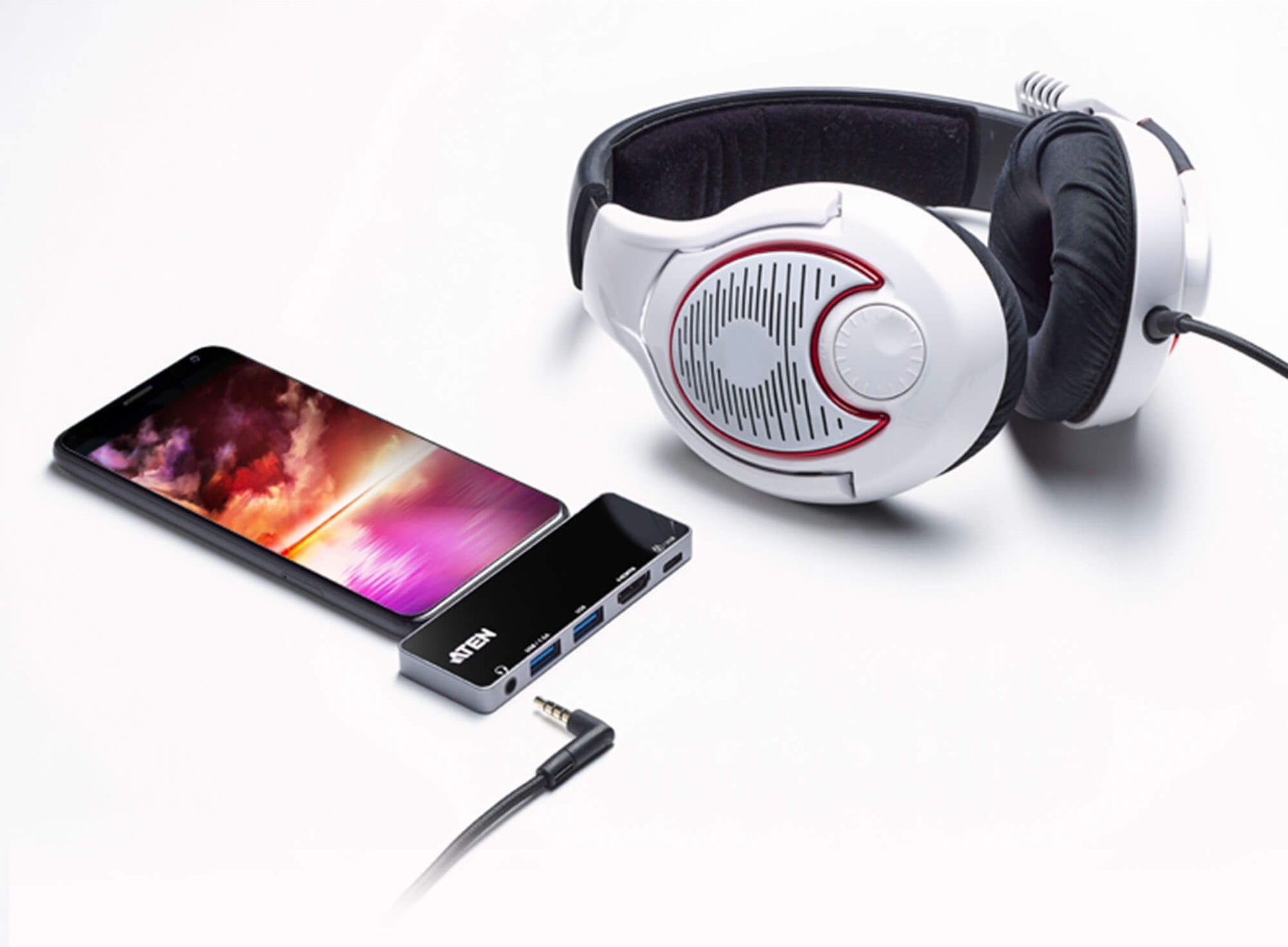

Includes one audio port
Two USB Type-A ports
One HDMI port
One USB-C DC in port

Power and Charging:

Supports USB PD 3.0 for charging up to 92W via a USB-C PD power adapter.
Power profiles include 5V, 9V, 15V, and 20V.

Video Output:

Supports DP 1.4 Alt mode with up to 4K (3840 x 2160) @ 60Hz for superior video output.
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant.

Compatibility and Ease of Use:

Plug and Play – no drivers needed.
Works with all major operating systems: Windows®, macOS X, iPad Pro (USB-C), and Android.
Compatible with Thunderbolt™3 (USB-C).

Design:

Compact and lightweight, ideal for a mobile workstation.
Apple M1 chip compatible.

Technical Specifications

Connectors:

Computer:

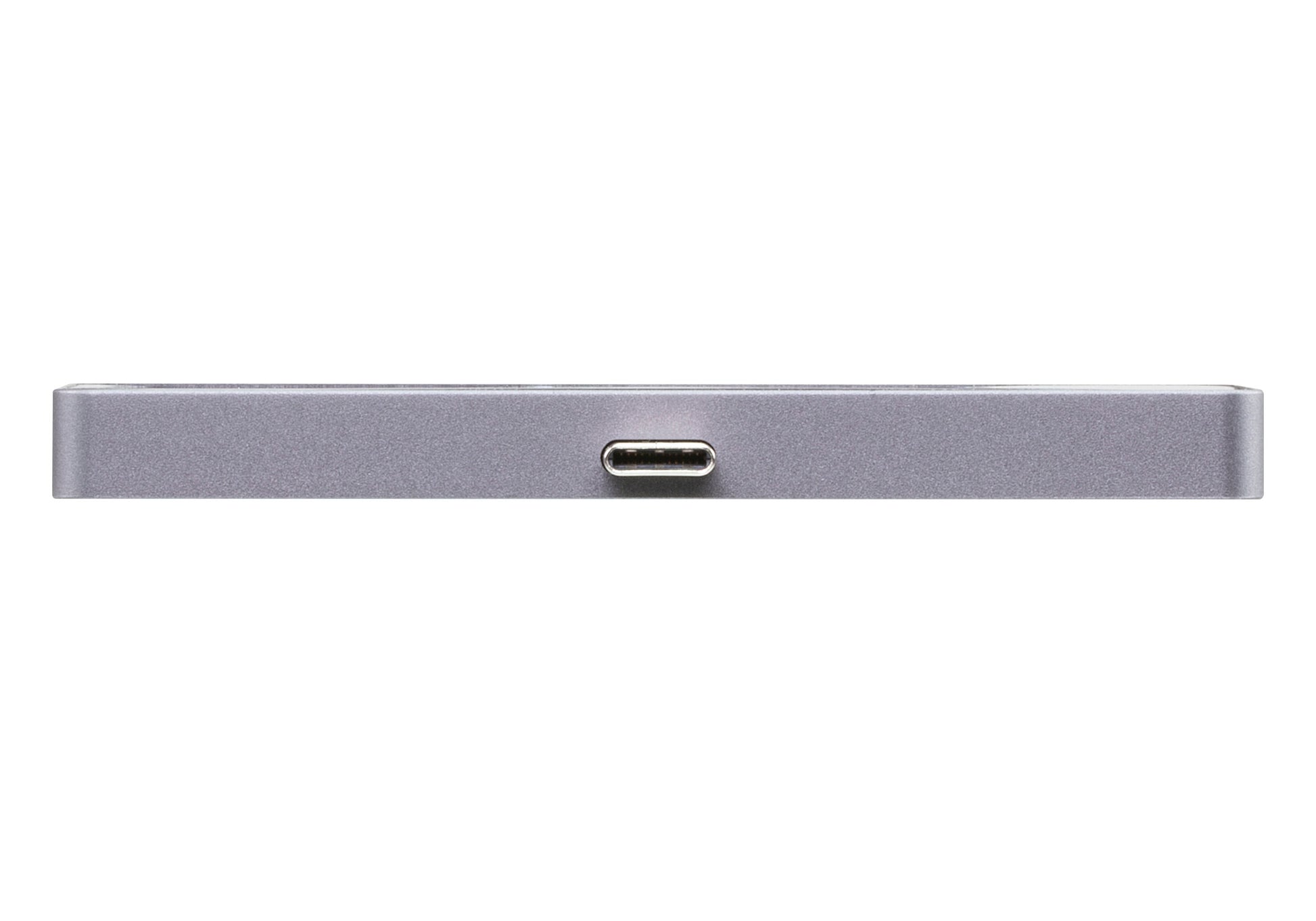

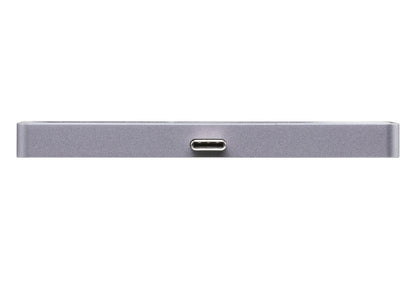

- USB 3.2 Gen 1 Type-C
Device:
- 1 x USB 3.2 Gen 1 Type-A female supports BC 1.2 (Max. output 5V, 7.5W)*
- 1 x USB 3.2 Gen 1 Type-A female (Max. output 5V, 4.5W)*
- 1 x USB 3.2 Gen 1 Type-C female (Max. output 5V, 12.5W)*
- *a. 2 x USB-A ports share a total of 5V, 9W when UH3238 is powered by an external USB-C PD power adapter.
- *b. 2 x USB-A and 1 x USB-C ports share a total of 5V, 7.5W when UH3238 is powered by an iPad via USB-C.
- *c. 2 x USB-A and 1 x USB-C ports share a total of 5V, 12.5W when UH3238 is powered by a PC via USB-C (@5V,3A bus-powered).

Video Output:

1 x HDMI Female (Black)

Audio:

1 x 3.5mm stereo 4-pole microphone and headphone jack

Power:

1 x USB Type-C Female (supports USB 3.2 Gen 1 Data transfer)*
*Supports Power Delivery 3.0 for laptop charging up to 92W; power profiles include 5V, 9V, 15V, 20V (additional USB-C PD power adapter needed).

Video Resolution:

3840 x 2160@60Hz*
*To achieve maximum bandwidth, the upstream should support standard DP1.4 Alt mode with DSC3:1 and HBR3. When connecting to a DP1.2 Alt mode supported upstream, the max resolution of HDMI is 4k@30Hz due to bandwidth limitations.

Power Consumption:

DC5V: 8W BTU/h
*Note: The measurement in Watts indicates the typical power consumption of the device with no external loading. The measurement in BTU/h indicates the power consumption when the device is fully loaded.

System Requirements:

Windows 10 and above, USB-C enabled computer with DP Alt Mode*
*Requires Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation can be found here: Intel Processor Numbers.
Mac OS X 10.12 and above, USB-C enabled computer
iPadOS 13.1 and above, iPad Pro (USB-C)
Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode
