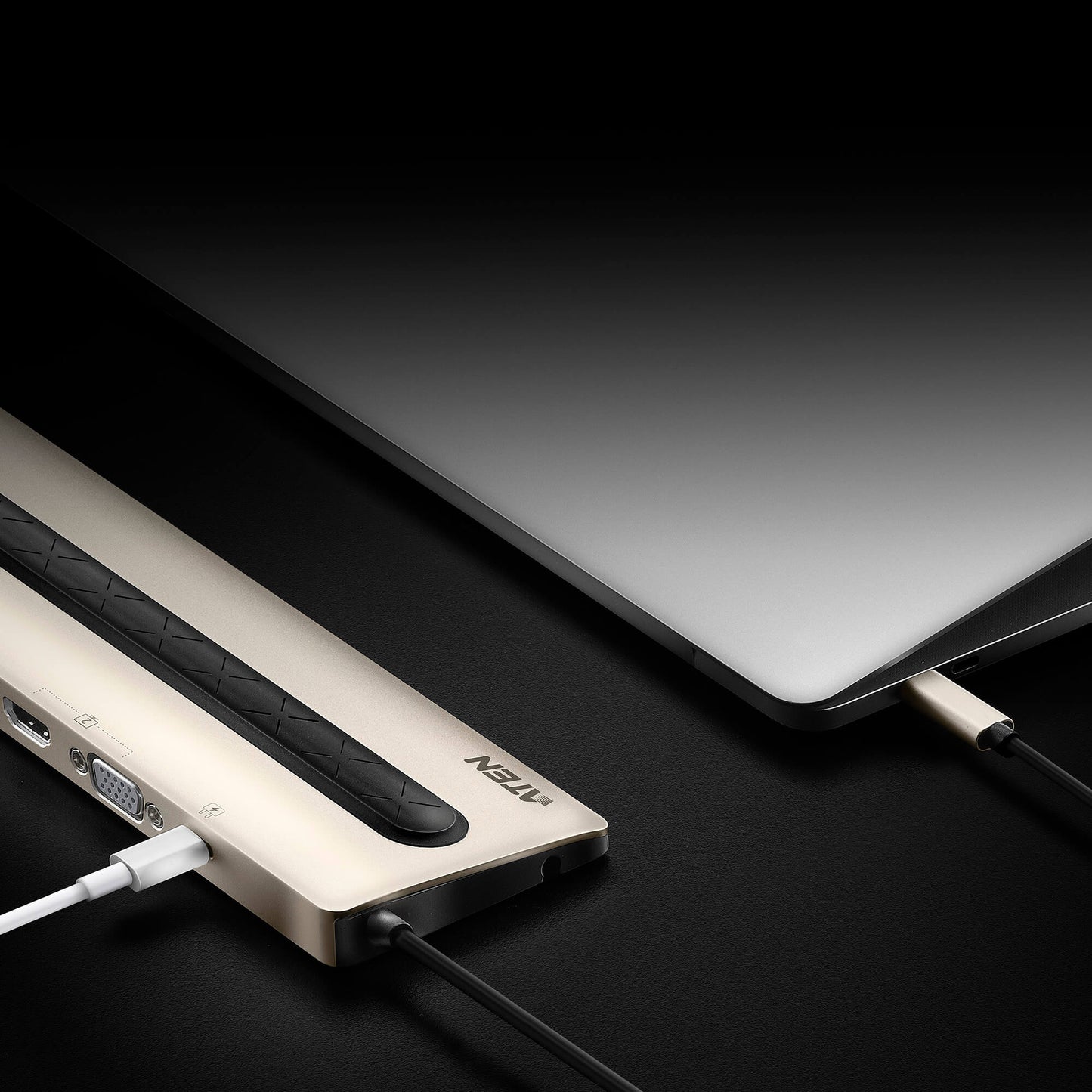

ATEN 15 Inch USB-C Multiport Dock with Power Pass-Through

The ATEN USB-C Multiport Dock is an ultra-sleek accessory that offers a comprehensive upgrade for your laptop. With a single cable connection, it provides up to 13 additional ports, including HDMI, VGA, USB 3.2 Gen 1, USB 2.0, SD/MicroSD card slots, Ethernet, and audio connections, all while supporting power delivery pass-through.

(*Requires device with USB-C DP Alt mode)

• Expands up to 13 devices instantly through a USB-C cable.
• Supports USB power delivery 3.0 (PD3.0) for laptop charging up to 85W via a USB-C PD power adapter with power profiles including 5V, 9V, 12V, 15V, and 20V.
• Supports single display output resolution up to 4K@30 (3840x2160@30Hz) on a single HDMI or dual display output at 1080p (1920 x 1080 @ 60Hz).
• Features 1 x USB 3.2 Gen 1 Type-A port that supports Battery Charging Specification Revision 1.2 (BC 1.2) for fast-charging devices.
• Includes 1 x USB 3.2 Gen 1 Type-C data port for the latest USB-C devices.
• Stylish and ultra-slim design allows users to place a 15” laptop directly on top of the docking station, saving desk space.
• Enhanced EMI protection achieved by increasing the cable braid density and adding conductive foam.
• Built-in memory card readers (SD/MMC/Micro SD).
• Compatible with all major operating systems: Windows®, OS X®, and iPad Pro.
• Thunderbolt 3 (USB-C) compatibility.
• Equipped with a 3.5mm Stereo 4-Pole Audio Jack with Microphone.
• Includes Gigabit Ethernet support.
• Compatible with Apple M1 chip devices.

Note: Fits 13”~15” laptops with a USB-C port on the left side.

The UH3237 USB-C Multiport Dock offers stunning 4K video capabilities and dual HD monitor support through HDMI and VGA connections. It seamlessly routes video from your source computer to an HDMI monitor while maintaining 4K resolution. Additionally, you can mirror or extend your Windows USB-C laptop to two monitors at 1920 x 1080@60Hz.

The UH3237 also supports USB-C Power Delivery Pass-Through up to 85W, allowing it to power your device via a USB-C PD power adapter with profiles ranging from 5V to 20V. It features an integrated USB 3.2 Gen 1 Type-A port for high-speed data transfer (up to 5Gbps), USB 2.0 Type-A ports for keyboard and mouse connectivity, and a Type-C data port for the latest USB-C devices.

This ergonomic, plug-and-play dock is compatible with major operating systems (Windows, OS X, and iPad Pro) and is designed to save space on your desktop. Its stylish, ultra-slim design allows you to place a 15” laptop directly on top of the dock or display it next to your monitors for a minimalist workstation. The UH3237 also includes built-in memory card readers, Gigabit Ethernet, and compatibility with Thunderbolt 3 (USB-C) and Apple M1 chip devices.

Technical Specifications:

Computer Connections:

• 1 computer connection.

Connectors:

• Computer:
  • 30 cm USB 3.1 Gen1 Type-C tethered cable.
• Device:
  • 2 x USB 2.0 Type-A Female (Black)*
  • 3 x USB 3.2 Gen 1 Type-A Female (Blue)*
  • 1 x USB 3.2 Gen 1 Type-C Female (Data Only)*
  • *The total output of 6 USB Ports is max. 5V, 10W.

Video Output:

• 2 x HDMI Female
• 1 x VGA Female

LAN Ports:

• 1 x Gigabit Ethernet Female (Black)

Audio:

• 1 x 3.5mm stereo 4-pole microphone and headphone jack

Power:

• 1 x USB Type-C Female*
• *Supports USB Power Delivery 3.0 for charging up to 85W, power profiles include 5V, 9V, 12V, and 20V.
• *For device charging, a Limited Power Source (LPS) certified single-port USB-C PD power adapter over 65 Watts is recommended.
• *The minimum system power requirement for basic USB functions and video output should be at least 5V, 15W.

Performance:

• Flash Memory:
  • 1 x SD Card Slot (SD/SDHC/SDXC)
  • 1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 128G)
• Video Resolution:
  • Single View:
    • HDMI - 3840x2160@30Hz or VGA - 1920 x 1080@60Hz
  • Dual View*:
    • 2 x HDMI – 1920 x 1080@60Hz
  • *For Dual-View to work, a computer’s graphics card must support MST technology. Mac computers only support a single-view output.
• Power Consumption:
  • DC5V:15W:66BTU/h
  • *Note: The measurement in Watts indicates the typical power consumption of the device with no external loading. The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

System Requirements:

• Windows 10 and above, USB-C enabled computer with DP Alt Mode*
• *With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: Intel Processor Numbers
• Mac OS X 10.12 and above, USB-C enabled computer
• iPadOS 13.1 and above, iPad Pro (USB-C)*
• *iPad Pro only supports single view in mirror mode.

Environmental:

• Operating Temperature:
  • 0–40°C
• Storage Temperature:
  • -20–60°C
• Humidity:
  • 0–80% RH, Non-condensing

Physical Properties:

• Housing:
  • Top Cover – Aluminum
  • Bottom Panel - Plastic
• Weight:
  • 0.37 kg (0.81 lb)
• Dimensions (L x W x H):
  • 35.03 x 7.50 x 1.48 cm (13.79 x 2.95 x 0.58 in.)

Warranty:

• 1 Year Manufacturers Carry-In Warranty
