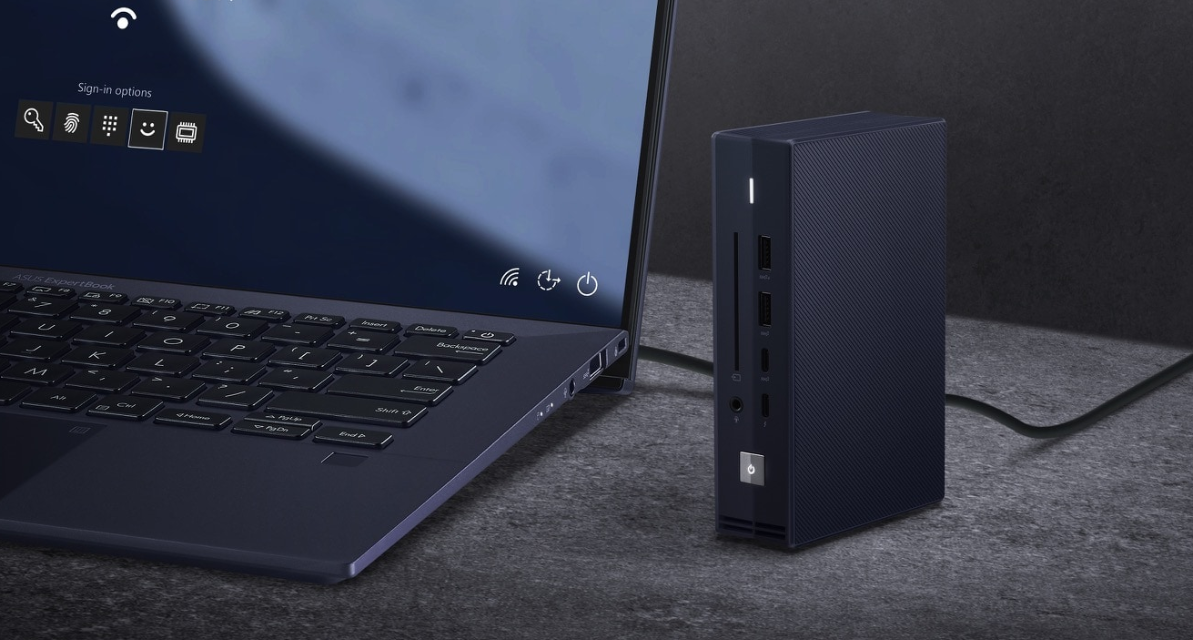

ASUS SimPro Dock 2

The ASUS SimPro Dock 2 is a sleek and compact one-stop docking station that simplifies laptop connectivity. By attaching your laptop via a single cable, it becomes powered, connected to your network and peripherals, and ready for multitasking across up to four monitors, including an impressive 8K display.

(*Requires laptop with USB-C DP Alt mode)

Additionally, the dock features an integrated smart card reader, making it suitable for a variety of business needs. In summary, the SimPro Dock 2 keeps your desk organized and efficiently sets you up for work in no time.

Productivity:

• One cable, unlimited possibilities
• Extensive connectivity and compatibility with ASUS and other laptops
• Instantly connects to extra data, power, peripherals, security, and management tools via a single USB-C cable

Advanced Networking, Management, and Security:

• Facilitates IT management and enhances security
• Features MAC address pass-through, remote port-disablement, and Wake-on-LAN

Loaded with Connectivity:

• Five USB connections for easy compatibility with peripherals
• Thunderbolt™ 3 for ultrafast data transfer speeds, fast charging, and video output
• USB 3.2 Gen 2 Type-A for fast-charging devices like smartphones and tablets

Smart Card Applications:

• Built-in smart card reader for user authentication and secure business applications

Power Efficiency:

• Supports up to 6A of power throughput for rapid charging
• Built-in 0.6 m cable for convenient laptop connection
• Provides up to 120W power for compatible laptops

Maximized Workspace:

• Connect up to four displays
• Supports up to one 8K display with Display Stream Compression (DSC)
• DisplayPort™ 1.4, HDMI™ 2.0, and traditional VGA connectivity

Design and Connectivity:

• Loaded with diverse ports, slots, and jacks
• Compact design keeps workspace tidy

Reliability:

• One-button operation for easy laptop startup
• Integrated LED indicates laptop synchronization

Smart Software:

• Pop-up messages assist with network selection
• Alerts if dock is connected without power

ASUS SimPro Dock 2 Display Support:

• The display support of the ASUS SimPro Dock 2 varies based on the processor and graphics capabilities of the connected laptop. For full details, please refer to the specifications.
• The SimPro Dock 2 supports up to one 8K display for a laptop that supports DSC (Display Stream Compression).

Compatibility:

• The ASUS SimPro Dock 2 is compatible with certain ASUS laptops as well as non-ASUS laptops.
• It works with laptops that support the industry-standard USB-C Alternate Mode or Thunderbolt protocols via the Type-C port.

Additional Features:

• The SimPro Dock 2 supports additional features on many ASUS laptops and displays, including:
  • MAC address passthrough
  • Wake-on-LAN (WOL)
  • Multiple display support
  • Mirrored power button
• Note that some features may not be available on certain ASUS laptops, ASUS Chromebooks, or non-ASUS laptops.

Technical Specifications

USB Ports:

• 3 x Downstream port for computer side (USB 3.0 Type A receptacle)
• 1 x Upstream port for computer side (TYPE C receptacle)
• 1 x Downstream port for computer side (Type C receptacle)

I/O Ports:

• 1 x MIC in port
• 1 x Audio out port
• 3 x USB 3.0 port up to 10Gbps
• 1 x USB 3.0 Charging port
• 1 x VGA port
• 1 x Standard HDMI port 2.0
• 1 x 10/100/1000M LAN port
• 1 x DC-in jack
• 1 x Thunderbolt 3.0
• 2 x Display 1.4
• 1 x Smart card reader

Video Resolution:

• Dual External Output: 3840 x 2160 (16:9)
• HDMI Single External Output: 3840 x 2160 (16:9)
• VGA Single External Output: 1920 x 1080 (16:9)

Power Adapter:

• ASUS 180W adapter

Security:

• Kensington lock

Dimensions:

• WxDxL: 99mm x 161.5mm x 40.6mm

Weight:

• 650g

Warranty:

• 3 Year Manufacturers Warranty

Note:

• Compatible models (for more details, please see ‘ASUS SimPro Dock 2 Compatible Model List’ at Support > Manual & Document > Compatibility)
